ecg

The ecg command allows you to run ECG event detectors (see available ECG modules for details).

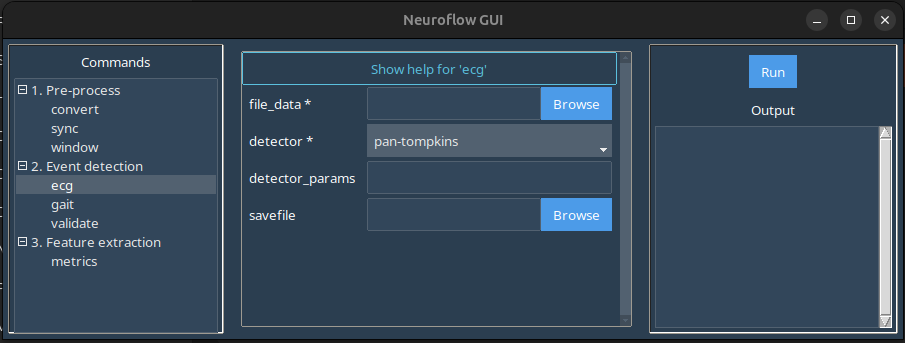

In the GUI, selecting the ecg command in the left-hand panel produces this screen:

event-ecg-gui

Here:

  • file_data: Launches a file browser where you should select a standardized NeuroFlow .CSV file to run ECG event detection on.
  • detector: Select the detector from the dropdown.

  • detector_params: Enter any custom parameters (see the parameters listed under each detector for reference) as a dictionary-like string ({"parameter_one": value_one, "parameter_two": value_two, ...})

  • savefile: Browse/enter the filepath for the exported .CSV file. If left blank, the exported .CSV file will be automatically named and placed in the same folder as the source file.

Example

Download the sample standardized Bittium .CSV data here: data-ecg.zip

In the GUI window:

  1. Under file_data select the extracted neuroflow-bittium.csv file.
  2. Select pan-tompkins from the detector dropdown.
  3. Set savefile or leave blank for default export path.
  4. Click Run in the right-hand panel to export a .CSV file with gait data appended to the source data.
