metrics

The metrics command allows you to create summary reports based on detected events (see the metrics listed under each detector for reference).

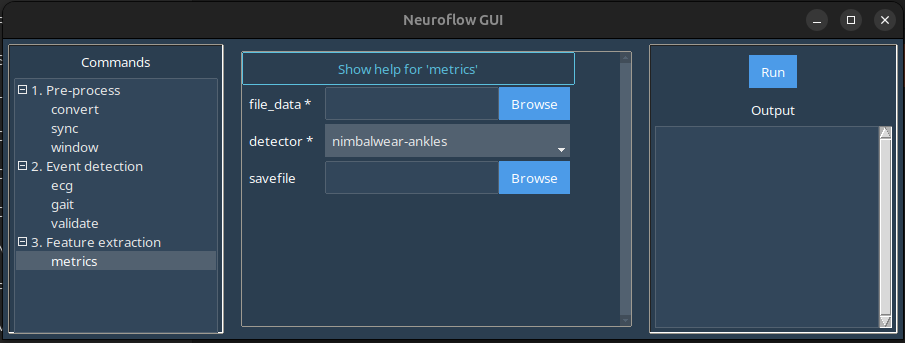

In the GUI, selecting the metrics command in the left-hand panel produces this screen:

feature-metrics-gui

Here:

  • file_data: Launches a file browser where you should select a processed NeuroFlow .CSV file to summarize detected events from.
  • detector: Select the source detector for the events to be summarized from the dropdown.
  • savefile: Browse/enter the filepath for the exported .CSV summary file. If left blank, the .CSV summary file will be automatically named and placed in the same folder as the source file.

Example

Download the sample processed Axivity and Bittium .CSV data here: data-metrics.zip

In the GUI window:

  1. Under file_data select one of a processed .CSV files.
  2. Select the appropriate detector for the file you chose to summarize.
  3. Click Run in the right-hand panel to generate the summary .CSV file.
