convert

The convert command allows you to transform raw data files from select modalities into a standardized .CSV file (i.e. standardized formatting, column names, etc.) to facilitate downstream processing.

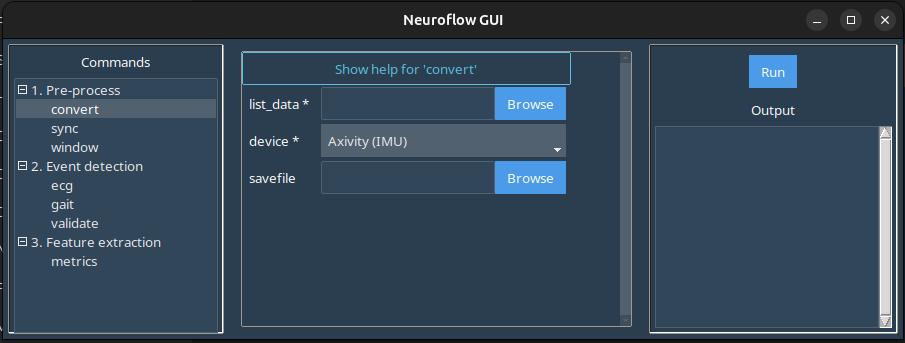

In the GUI, selecting the convert command in the left-hand panel produces this screen:

pre-convert-gui

Important

This command is intended for converting short collections (i.e. small files) that can be loaded into the computer's memory - if you are working with free-living data (i.e. a period of collection >24 hours), the use the sync or window commands to directly stream the sensor data and split into event/window .CSV files to pre-process your data.

Here:

  • list_data: Launches a file browser where you should select the file to be converted.

    Note

    In the case of modalities where there are multiple files per capture (e.g. Axivity files where there are multiple sensor files), select all the files that correspond to the data capture.

  • device: Select the modality to be converted from the dropdown.

  • savefile: Browse/enter the filepath for the converted .CSV file. If left blank, the converted .CSV file will be automatically named and placed in the same folder as the raw files.

Example

Download the sample Axivity data here: data-convert.zip

In the GUI window:

  1. Under list_data select all the extracted .CWA files.
  2. Ensure *Axivity (IMU) is selected in the device dropdown.
  3. Set savefile or leave blank for default export path.
  4. Click Run in the right-hand panel to produce the .CSV
